Solar Module Efficiency – What It Is & How It’s Calculated:

Solar module efficiency is one of the most critical factors in determining the performance of a solar panel. It represents how effectively a solar panel converts sunlight into usable electricity. Higher efficiency means more power generation from the same surface area.

In this blog, we’ll break down:

• What solar module efficiency means and why it matters.
• The formula to calculate solar efficiency with step-by-step examples.
• Key factors affecting efficiency, including material, technology, and environmental conditions.
• Ways to improve efficiency, such as choosing advanced solar panel technologies and optimising installation.

✅ What is module efficiency means?

We all understand efficiency as the ratio of output to input. However, many people often get confused between solar module efficiency and solar plant efficiency. I remember an instance from one of my past interviews where the interviewer asked me, “What do you mean by solar module efficiency?” Interestingly, during our discussion, he himself got confused between solar module efficiency and solar plant efficiency. Let’s understand this concept in detail.

Solar module efficiency is the ratio of the electrical power output generated by a solar panel to the solar energy it receives from the sun. It represents how effectively a solar panel converts sunlight into usable electricity.

Suppose a solar module manufacturer gives 21% module efficiency then it means that 21% of the sunlight energy falling on the panel is converted into usable electrical power, while the remaining 79% is lost as heat, reflection, or other losses.

✅ Formula to calculate solar efficiency with step-by-step examples:

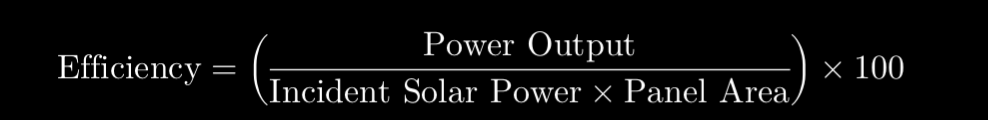

Solar module efficiency is calculated using the formula:

Where:

• Power Output (W): The rated power of the solar panel under Standard Test Conditions (STC).

• Incident Solar Power (W/m²): The sunlight intensity, typically assumed as 1000 W/m²under STC.

• Panel Area (m²): The physical surface area of the module.

This module dimensions is (L*W*H) = 2278*1133*35 MM. Now we shall calculate the efficiency of this solar module –

Panel Area = 2.27*1.13 = 2.58 m2, We have converted the dimension from MM into MTR
Power Output = 550 Watt
Solar Incident Power = 1000 W/m2

Now we shall calculate the efficiency of solar module as we have required input for the calculation,

Efficiency = 550/(1000*2.58) = 21.31%

Now this mean’s that 21.31% of the sunlight energy falling on the panel is converted into usable electrical power, while the remaining 78.69% is lost as heat, reflection, or other losses. A 550W solar panel with dimensions 2278 mm × 1133 mm achieves an efficiency of approximately 21.31% under STC conditions.

✅ Key factors affecting efficiency, including material, technology, and environmental conditions.

A. Material & Technology

• Solar Cell Type: Mono-Si (18-23%), PERC (20-24%), Bifacial (20-28%), TOPCon (22-25%), HJT (22-26%)
• Anti-Reflective Coating & Surface Treatment: Reduces light reflection and improves absorption.
• Wiring & Busbar Design: Multi-busbar (MBB), half-cut cells, and shingled designs reduce resistance and losses.

B. Environmental Conditions:

• Temperature & Heat Loss: Efficiency drops 0.3% – 0.5% per °C above 25°C.
• Shading & Dirt: Even partial shading or dust can significantly reduce output.
• Angle & Orientation: Proper tilt and tracking systems improve sunlight capture.
• Humidity & PID Effect: High humidity accelerates Potential-Induced Degradation (PID).

C. Degradation & Aging Effects:

• LID (Light-Induced Degradation): Initial efficiency drop due to oxygen impurities in silicon.
• PID (Potential-Induced Degradation): Voltage stress reduces power output.
• Annual Degradation Rate: 0.3% – 0.7% per year, with panels retaining 80%-90% efficiency after 25 years.

D. Electrical & System Losses:

• Mismatch Losses: Differences in panel quality, dirt, or temperature variations affect performance.
• Inverter Losses: String inverters have 2% – 4% conversion losses.
• Cable Losses: Poor wiring leads to power drop, especially in low-voltage systems.

✅ Ways to Improve Efficiency:

Solar module efficiency plays a crucial role in maximising energy generation. Several factors, including material properties, environmental conditions, and system design, impact performance. By implementing the right strategies, you can significantly enhance the efficiency and lifespan of solar panels.

A. Choose High-Efficiency Panels • As this we discussed above, Choose for mono-crystalline, PERC, HJT, or TOPCon technology for better energy conversion. Bifacial modules can capture additional sunlight from the rear side.

B. Regular Cleaning & Maintenance: Remove dust, dirt, and bird droppings to prevent shading losses. Inspect for cracks, hotspots, or signs of degradation regularly.

C. Optimise Panel Orientation & Tilt Angle: Position panels at the ideal tilt and azimuth for maximum sunlight absorption. Use solar tracking systems to follow the sun’s path, increasing output by 20%-40%.

D. Minimise Shading & Use Optimisers: Install panels away from obstructions like trees and buildings. Use optimisers to reduce shading impact.

E. Reduce Temperature Losses: Choose panels with a low temperature coefficient (e.g., HJT, TOPCon). Ensure proper airflow and ventilation to dissipate heat.

F. Select Efficient Inverters & Wiring: Use inverters with >98% efficiency to minimise conversion losses. Install low-resistance cables and avoid long DC cable runs.

G. Prevent Potential-Induced Degradation (PID): Choose PID-resistant panels for high-humidity or high-voltage environments. Use proper grounding and insulation to prevent leakage currents.

By implementing these measures, you can maximize solar energy production. That’s all for now—see you in the next post! Thanks!
